Ditch Witch Fx30 Trailer Vacuum Excavator Rental

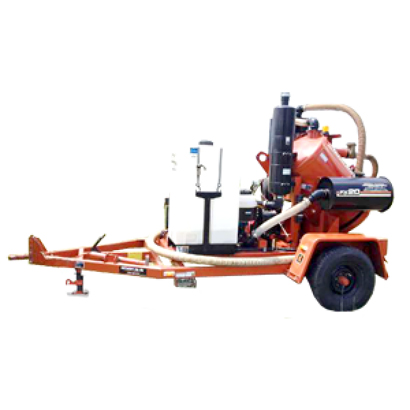

Ditch Witch Fx20 Trailer Vacuum Excavator Rental



The FX30 vacuum excavator is ideal for a wide range of relatively small projects and multiple short runs per day, including municipal tasks such as valve box cleanout, storm drain cleanout, commercial and residential debris cleanup and landscaping, underground utility location, posthole digging, and construction site storm water control. Offering a choice of options, the 27-hp (20.1-kW) FX20 vacuum excavator has the suction power of the larger FX30, yet it can be easily transported with a flatbed or pickup truck.


Dimensions Power
Length 174 in. Engine Kohler® CH740S
Width 86in. Fuel Gasoline
Height, w/out boom 93 in. Cooling Medium Air
Weight, empty 2,576 lb Aspiration Natural
GVWR 4,500 lb Number of Cylinders 2
Vacuum System Manufacturer's Gross Power Rating 25 hp
Air Flow 543 cfm Rated Speed 3,600 rpm
Vacuum, Max 15 in Hg Fuel Tank Capacity 10 gal
Vacuum Tank Capacity 150 gal Water System
Tank Outlet Valve Size 4 in. Water Tank Capacity 80 gal
Filter Type Washable Polyester Water Pump Flow 2.6 gpm
Filter Area 74 ft2 Water Pump Pressure, Max 3,000 psi
Suction Hose 3 in. Antifreeze System 50/50 water/antifreeze mix
Battery Pressure Hose Length (locking reel) 50 ft
SAE Reserve Capacity Rating 41 min Noise Level
SAE Cold Crank Rating @ 0°F (-18°C) 340 amps Sound Power 110 dba
Electrical System 12 V Sound Pressure 84 dba
