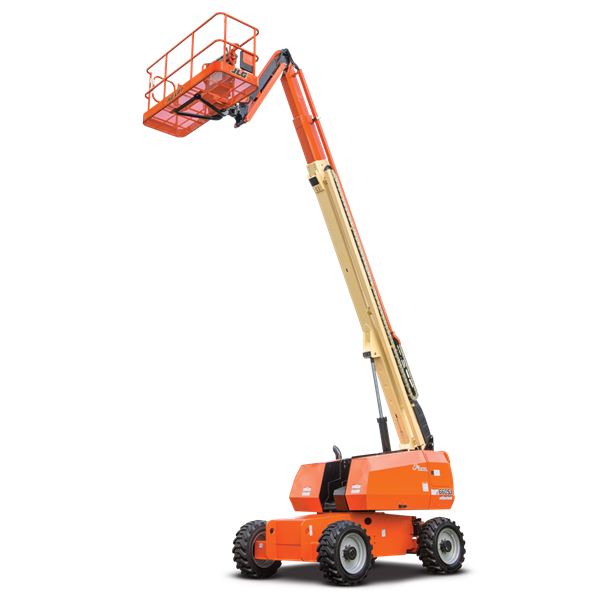

JLG 660SJ 4WD Telescopic Boom Lift Rental

JLG 660SJ 4WD Telescopic Boom Lift Rental



The 600 Series has a powerful combination of performance and reliability so you can conquer all of your worksite challenges. Lift heavier loads with a platform capacity of 1,000 lb (454 kg) and get improved access with over 56 ft (17.07 m) of horizontal outreach. Mud, sand and rough terrain are no match for the standard oscillating axle and 45% grade climbing ability.


Dimensions Engine
Overall Length 33.5 ft in Make Deutz
Overall Width 7.9 ft in Model F4M2011
Overall Height
(mast lowered)
8.4 ft in Gross Power 64.4 hp
Wheelbase 8.1 ft in Fuel Type Diesel
Ground Clearance 11.8 in Operational
Turning Radius 11.3 ft in Operating Weight 27599.7 lb
Platform Fuel Capacity 39.9 gal
Max Platform Height 66.7 ft in Hydraulic System Fluid Capacity 32 gal
Max Horizontal Reach 56.8 ft in Max Speed 4.2 mph
Max Platform Weight Capacity 500.4 lb Tire Size 15 x 19.5
Platform Length 96.1 in Tire Fill / Type Lug Thread
Platform Width 35.8 in
Platform Rotation 180 degrees
