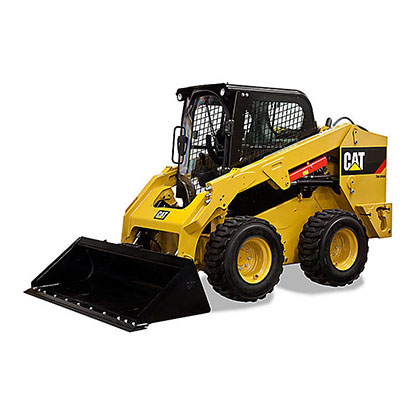

Caterpillar 246C Skid Steer Loader Rental

Caterpillar 246C Skid Steer Loader | Skid Steer Rentals



The Caterpillar 246C Skid Steer Loader is an industry-first sealed and pressurized cab, increased rated operating capacity, higher horsepower and superior performace help you get more done and increase your bottom line. Features include power train, radial lift linkage, and hydraulics.

Attachments available include: rollers, forks, augers, rock bits, sweepers, grapple buckets, and hammers.

Dimensions Engine
Length with Bucket 12.1 ft in Make Caterpillar
Width Over Tires 5.5 ft in Model 3044C DIT
Height to Top of Cab 6.8 ft in Gross Power 75 hp
Wheelbase 4.1 ft in Net Power 73 hp
Ground Clearance 8.8 in Power Measured @ 2500 rpm
Length W/O Bucket 10.3 ft in Displacement 201 cu in
Clearance At Max Lift and Dump 8 ft in Number of Cylinders 4
Reach at Max Lift and Dump 23.6 in Operational
Turning Radius From Center - Machine Rear 58.5 in Operational Weight 7381 lb
Turning Radius From Center - Inc Bucket 94.9 in Fuel Capacity 26 gal
Loader Cooling System Fluid Capacity 2.7 gal
Operating Load Rating 2150 lb Engine Oil Fluid Capacity 2.6 gal
Tipping Load 4300 lb Hydraulic System Fluid Capacity 15 gal
Breakout Force 7328 lb Chain Box Fluid Capacity - Each Side 2.6 gal
Bucket Capacity 0.46 yd3 Operating Voltage 12 V
Hydraulic Alternator Supplied Amperage 90 amps
Pump Flow Capacity 22 gal/min
Relief Valve Pressue 335 psi
