Ditch Witch Sk750 Mini Skid Steer Rental

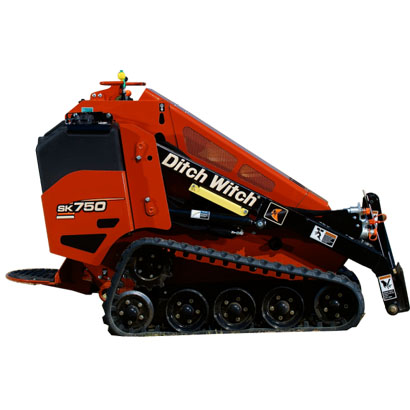

Ditch Witch Sk750 Mini Skid Steer



The Ditch Witch® SK750 Mini Skid Steer is built to outperform on any jobsite. Featuring a high-drive track system and an enhanced operator’s station, it delivers superior performance through increased ground clearance, more lift capacity, faster ground speed, longer track life, and more operator comfort. And with more horsepower to the attachment than the competition, the SK750 will help make you more productive and more profitable, job after job.

Attachments available include: forks and buckets.


Dimensions Operation
Operating Height
( max, std. bucket)
103 in. Ground Drive Speed
Overall Length of Machine
(std. bucket)
105 in.       Forward /Reverse       4.7 mph
Overall Length of Loader
(no attachment)
86 in. Ground Pressure*
(ISO/CD 16754)
Machine Weight
(no attachment, fluids full)
2,890 lbs.       7 in (180-mm) tracks        4.8 psi
Hinge Pin Height, Max 81 in.       9 in (230-mm) tracks       3.8 psi
Wheelbase / Track Length 43 in. Hydraulic System
Track Width Auxiliary Circuit
Double Gear Pump
      Max       42 in.       Flow Rate ( Pump #1)       6.5 gpm
      Min       6 in.       Flow Rate ( Pump #2)       5.5 gpm
Ground Clearance       Pressure       3,000 psi
      Center       8.9 in. Ground Drive
Dual Hydrostatic Pumps
      Side       3.7 in.       Flow Rate       13.9 gpm
Tipping Capacity 2,285 lbs.       Pressure       3,500 psi
Rated Operating Capacity Fluid Capacities
      35% of Tipping
      800 lbs. Fuel Tank Capacity 10.5 gal
Angle of Departure 27" Engine Oil, w/filter 4.2 qt
Power 800 lbs. Hydraulic Reservoir Capacity 9.2 gal
Engine Kubbota® D1105 Battery
Fuel Diesel SAE Reserve Capacity Rating 110 min
Number of Cylinders 3 SAE Cold Crank @ 0°F (-18°C) 800 amps
Displacement 68.5 in3 SAE Cold Crank @ 0°F (-18°C) 800 amps
Bore 3.07 in. Electrical System 12V
Stroke 3.09 in.
Rated Speed 3,000 rpm
Gross Power Rating 24.8 hp
Emissions Compliance EPA Tier 4
