Caterpillar 303.5e CR Mini Escavator Rental

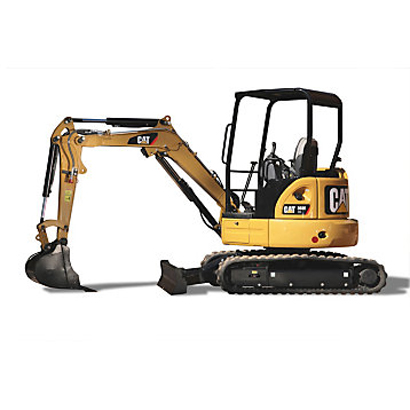

Caterpillar 303.5e CR Mini Escavator



The Cat 303.5E CR Mini Excavator delivers high performanace in a compact design to help you work in the tightest applications. This model features increased stability while maintaining the compact radius design. This increase stability leads to more productivity and versatility through the use of heavier work tools. It also features a zero tail swing design. The radius for the upper body stays entirely within the width of the undercarriage.

Attachments available include: hammers.


Dimensions Specifiications
Broom/Stick Option HEX 1 Standard Stick Engine
Shipping Length of Unit 15.6 ft in        Make        Mitsubishi
Shipping Height of Unit 8.2 ft in        Model        S3Q2T
Max Cutting Height 16.5 ft in        Gross Power       41 hp
Max Loading Height 11.8 ft in       Net Power        39.4 hp
Max Reach Along Ground 17.2 ft in        Power Measured @       2400 rpm hp
Max Vertical Wall Digging Depth 8.2 ft in        Displacement       114.6 cu in
Max Digging Depth 10.3 ft in        Number of Cylinders       3
Width to Outside of Tracks 5.8 ft in Operational
Height to Top of Cab 8.2 ft in        Operating Weight       8200 lb
Ground Clearance 1.1 ft in       Fuel Capacity       13.5 gal
Counterweight Clearance 1.8 ft in       Cooling System Fluid       Capacity       1.6 gal
Tail Swing Radius 3.2 ft in       Hydraulic Fluid Capacity        17.2 gal
Length Of Track on Ground 7.3 ft in       Operating Voltage        12 V
Undercarriage Alterator Supplied Amperage 50 amps
Shoe Size 12 in       Hydraulic System Relief       Valve Pressure       3553 psi
Max Travel Speed 2.8 mph       Hydraulic Pump Flow       Capacity        23.1 gal/min
Track Gauge 4.8 ft in Swing Speed 9rmp
