Genie S45 Telescopic Boom Lift Rental

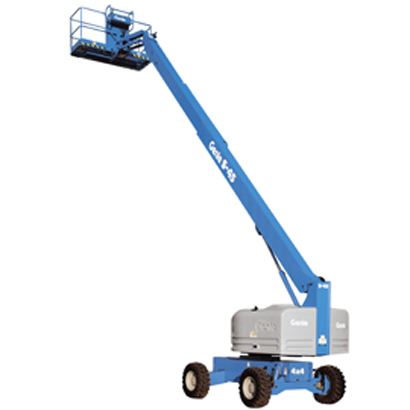

Genie S45 Telescopic Boom Lift



Genie® telescopic S™-booms offer greater horizontal outreach than any other type of aerial platform — perfect for areas with limited access in construction and industrial applications.


Dimensions Engine
Overall Length 24.2 ft in Make Ford
Overall Width 7.5 ft in Model DSG 423
Overall Height
(mast lowered)
8.2 ft in Gross Power 75 hp
Wheelbase 7.2 ft in Fuel Type Gas/LPG
Ground Clearance 1.3 in Operational
Turning Radius 15.7 ft in Operating Weight 14790.8 lb
Platform Tire Size 12-16.5 NHS
Max Working Height 46.6 ft in Fuel Capacity 20.1 gal
Max Platform Height 40 ft in Hydraulic System Fluid Capcacity 44.9 gal
Max Horizontal Reach 31.7 ft in Max Speed 4.8 mph
Max Platform Weight Capacity 500.4 lb
Platform Length 96.1 in
Platform Width 29.9 in
Platform Rotation 160 degrees
